Product Code：ETA5056

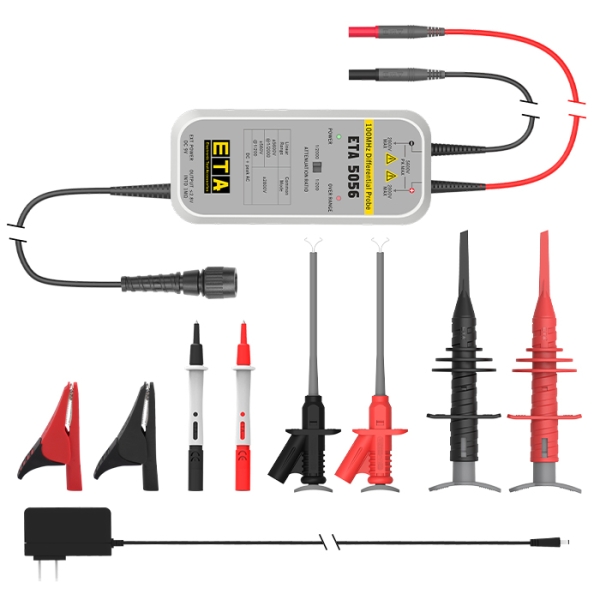

ETA5056 High voltage differential probe

The high-voltage differential probe adopts differential input mode and is mainly used in places where high-voltage floating ground measurement is required. This series of high-performance high-voltage differential probes have good common-mode noise rejection capability. Its bandwidth is up to 100MHz, and its input has high input impedance and low input capacitance. It can measure differential voltage signals accurately and at high speed, which can meet the needs of most test systems.

$557.00

Free Shipping

Add to cart Buy Now

Payment method

Safe and environmentally friendly shopping

Print article

Recently Recommended

Bandwidth

100MHz
Rise time

≤3.5ns
Accuracy

±2%
Attenuation ratio

200X;2000X
Voltage range

±5600V DC+Peak AC
Common mode voltage

±5600V DC+ Peak AC
Maximum input voltage to ground

2800V CAT I 1400V CAT II Vrms
Delay time

20ns±1ns
Linearity

±1%
Input impedance

Single-ended to ground 16MΩ ± 1%； Two input terminals 32MΩ ± 1%
Input capacitance

Single-ended to ground ＜4pF ；Two input terminals ＜2pF
CMRR

DC > 80dB ;100Hz > 60dB; 1MHZ > 50dB
Noise level

200X ＜ 300mVrms ; 2000X ＜ 2000mVrms
Overload indication voltage threshold

200X ≥ 580V; 2000X ≥ 5800V
Overload indicator lamp

Red Light
Input Wire Length

60mm
Output lead length

90mm
Overall dimension

120mmx55mmx24mm
Weight

150g
Working temperature and humidity

0~40°C,80% or less
Save temperature and humidity

-10~40°C,80% or less
Power

USB 9V/1A Adapter
