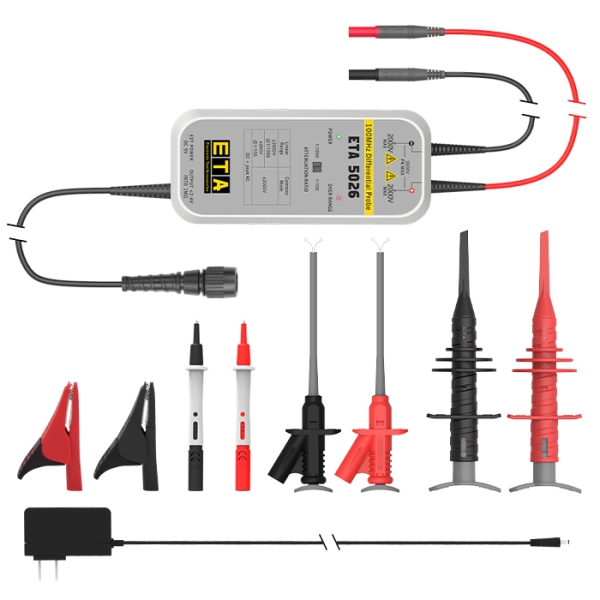

ETA5026 High voltage differential probe

ETA oscilloscope differential probe is very suitable for power testing, switching power supply, inverter, motor drive control, switching power supply research and development, maintenance evaluation.

Safe Floating Measurements

Will not damage the oscilloscope and the device under test

Strong anti-interference ability

Sound and light alarm function

Good common mode noise rejection capability

• Bandwidth

  100MHz

• Rise time

  ≤3.5ns

• Accuracy

  ±2%

• Attenuation ratio

  100X;1000X

• Voltage range

  ±260V / ±2600V

• Common mode voltage

  ±2600V DC+ Peak AC

• Maximum input voltage to ground

  2000V CAT I 1000V CAT II Vrms

• Delay time

  20ns±1ns

• Linearity

  ±1%

• Input impedance

  Single-ended to ground 8MΩ ± 1%； Two input terminals 16MΩ ± 1%

• Input capacitance

  Single-ended to ground ＜7pF ；Two input terminals ＜3.5pF

• CMRR

  DC > 80dB ;100Hz > 60dB; 1MHZ > 50dB

• Noise level

  100X ＜ 150mVrms ; 1000X ＜ 1000mVrms

• Overload indication voltage threshold

  100X ≥ 280V; 1000X ≥ 2800V

• Overload indicator lamp

  Red Light

• Input Wire Length

  60mm

• Output lead length

  90mm

• Overall dimension

  120mmx55mmx24mm

• Weight

  150g

• Working temperature and humidity

  0~40°C,80% or less

• Save temperature and humidity

  -10~40°C,80% or less

• Power

  USB 9V/1A Adapter
