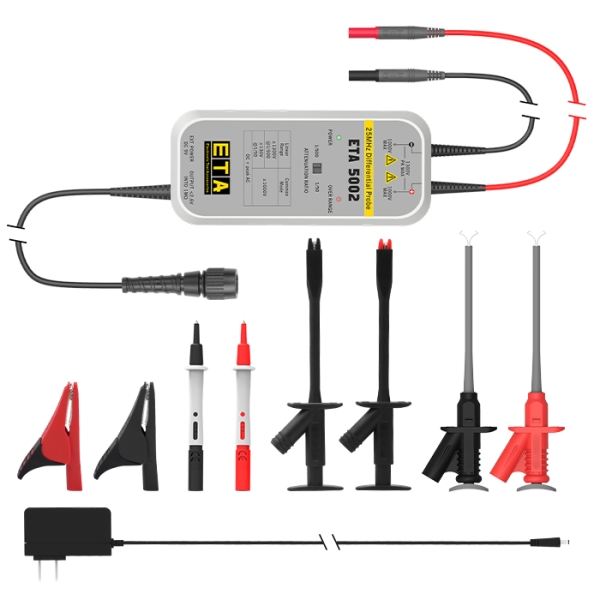

ETA5002 High voltage differential probe

ETA oscilloscope differential probe is very suitable for power testing, switching power supply, inverter, motor drive control, switching power supply research and development, maintenance evaluation.

Safe Floating Measurements

Will not damage the oscilloscope and the device under test

Strong anti-interference ability

Sound and light alarm function

Good common mode noise rejection capability

• Bandwidth

  25MHz

• Rise time

  ≤14ns

• Accuracy

  ±2%

• Attenuation ratio

  50X;500X

• Voltage range

  ±130V /±1300V

• Common mode voltage

  ±1300V DC+ Peak AC

• Maximum input voltage to ground

  1000V CAT II 600V CAT III Vrms

• Delay time

  20ns±1ns

• Linearity

  ±1%

• Input impedance

  Single-ended to ground 4MΩ ± 1%； Two input terminals 8MΩ ± 1%

• Input capacitance

  Single-ended to ground ＜7pF ；Two input terminals ＜3.5pF

• CMRR

  DC > 80dB ;100Hz > 60dB; 1MHZ > 50dB

• Noise level

  50X ＜ 75mVrms ; 500X ＜ 500mVrms

• Overload indication voltage threshold

  50X ≥ 140V; 500X ≥ 1400V

• Overload indicator lamp

  Red Light

• Input Wire Length

  60mm

• Output lead length

  90mm

• Overall dimension

  120mmx55mmx24mm

• Weight

  150g

• Working temperature and humidity

  0~40°C,80% or less

• Save temperature and humidity

  -10~40°C,80% or less

• Power

  USB 9V/1A Adapter
