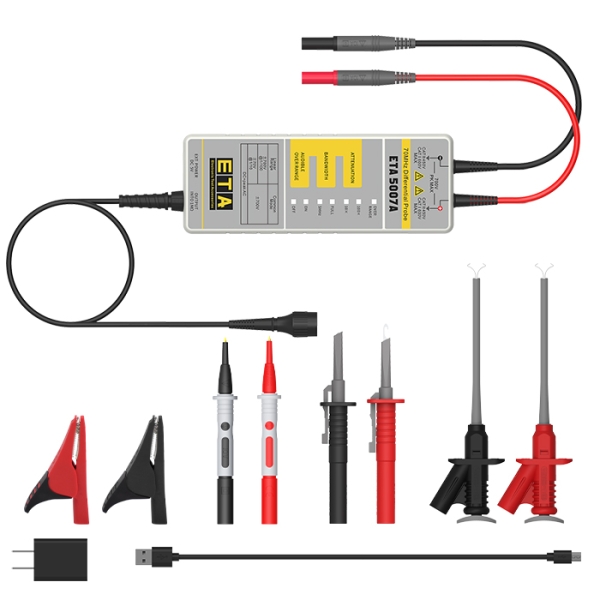

ETA5007A High voltage differential probe

ETA oscilloscope differential probe is very suitable for power testing, switching power supply, inverter, motor drive control, switching power supply research and development, maintenance evaluation.

Safe Floating Measurements

Will not damage the oscilloscope and the device under test

Strong anti-interference ability

Sound and light alarm function

5MHz Bandwidth Limit Feature Selection

Good common mode noise rejection capability

• Bandwidth

  70MHz

• Rise time

  ≤5ns

• Accuracy

  ±2%

• Attenuation ratio

  10X;100X

• Voltage range

  ±70V / ±700V

• Common mode voltage

  ±700V DC+ Peak AC

• Maximum input voltage to ground

  450V CAT II 600V CAT I Vrms

• Delay time

  21ns

• Input impedance

  Single-ended to ground 2.5MΩ ± 1%； Two input terminals 5MΩ ± 1%

• Input capacitance

  Single-ended to ground ＜4pF ；Two input terminals ＜2pF

• CMRR

  DC > 80dB ;100KHz > 60dB; 1MHZ > 50dB; 3.2MHz > 30dB; 50MHz > 26dB

• Noise level

  10X ＜ 20mVrms ; 100X ＜ 120mVrms

• Overload indication voltage threshold

  10X > 70V; 100X > 700V

• Bandwidth Limit (5MHZ)

  ≥-3dB @ 5MHZ

• Overload indicator lamp

  Red Light

• Overload alarm sound

  support; optionally off

• Bias adjustable function

  Support (enter test mode under adjustment)

• Terminal load requirements

  ≥100kΩ

• Power

  USB 5V/1A Adapter
