Product Code：ETA5406

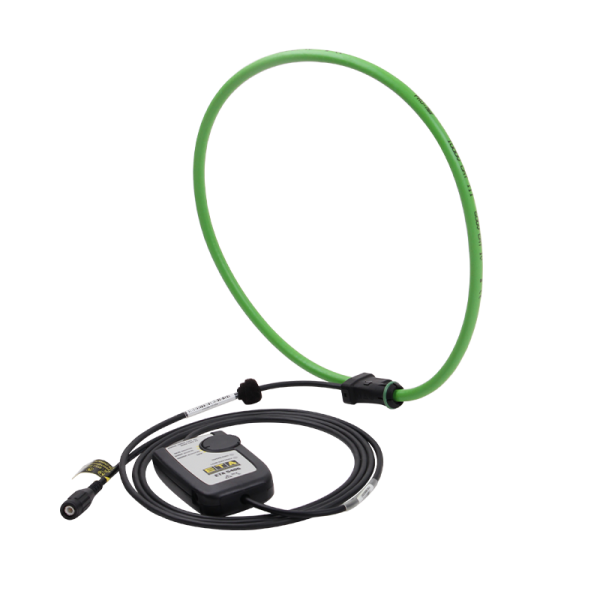

ETA5406 Current probe
ETA5406 oscilloscope flexible current probe, the coil is light and soft and can be plugged and unplugged freely, can detect many places that cannot be reached by hard probes, and can be easily connected with the measured object. The standard BNC output interface is very convenient to connect with oscilloscope, data collector, digital voltmeter, etc. The observed current waveform meets the test requirements of special occasions.
$1,024.00
Free Shipping
Payment method
Safe and environmentally friendly shopping
Recently Recommended
-
ETA5314 Current probe$1069.00$1069 -
ETA5320 Current probe$613.00$613 -
ETA5321 Current probe$613.00$613 -
ETA5322 Current probe$613.00$613 -
ETA5325 Current probe$613.00$613 -
ETA5315 Current probe$634.00$634 -
ETA5406 Current probe$1024.00$1024 -
ETA5302B Current probe$403.00$403 -
ETA5403 Current probe$702.00$702 -
ETA5303 Current probe$1063.00$1063 -
ETA5302 Current probe$253.00$253 -
ETA5505A Current probe$849.00$849 -
ETA5302A Current probe$360.00$360 -
ETA5505C Current probe$1491.00$1491
-
ETA5520A Current probe$634.00$634
-
ETA5540B Current probe$1063.00$1063
-
ETA5540A Current probe$849.00$849
-
ETA56150A Current probe$2764.00$2764 -
ETA5303A Current probe$999.00$999 -
ETA56300A Current probe$3193.00$3193 -
ETA56150U Current probe$2121.00$2121 -
ETA5540C Current probe$1491.00$1491
-
ETA56300U Current probe$2764.00$2764 -
ETA56500A Current probe$3836.00$3836
Main application
Measuring the harmonic composition of the current
Detecting sinusoidal current waveform
Measuring the phase shift in a sine wave
Current of semiconductor switch
distributed current monitoring
power bus monitoring
Monitor harmonics, power and power quality
Large motor, pump, fan test IGBT, MOSFET tube current measurement
-
Bandwidth
10Hz to 10KHz
-
Current
AC peak 6000A
-
Rise time
≤3.5us
-
Range sensitivity
0.5mV/A、5mV/A、50mV/A
-
Phase
≤1°
-
Accuracy
±1% of reading +0.1A 60A range；±1% of reading +1A 600/6000A range
-
Power
Two AA mn1500 LR6 alkaline batteries,or an external power supply (+3V/100mA)
-
Low battery
Orange LED
-
Overrange
RED LED
-
Sensor length
9150mm
-
Cable length
0.5m
-
Temperature and humidity
-20~65°C;10%-85%RH
