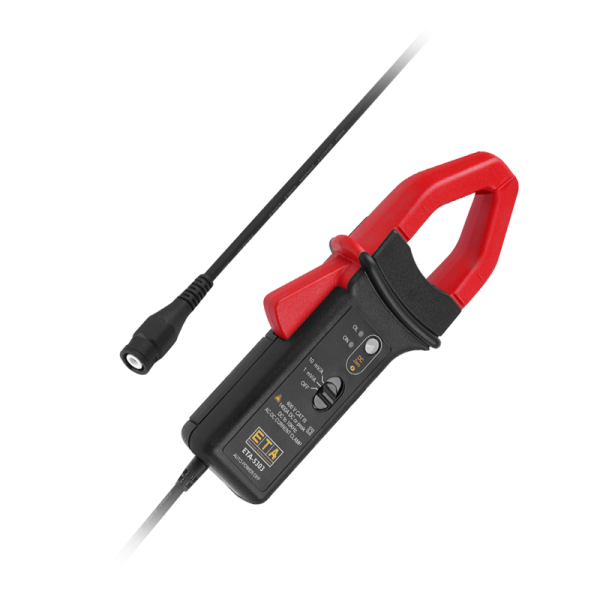

ETA5303 Current probe


Recently Recommended
ETA5303 is the 1 universal oscilloscope current probe, compatible with more than 95% of oscilloscopes on the market, with a frequency response measurement range of 0.5A to 1400A (peak value) up to 10KHz, and BNC output terminals. Connect an oscilloscope to accurately measure AC or DC current waveforms. The 3 position sliding switch on the handle panel can select range and ON/OFF
Product features:
AC/DC dual-use
Current measurement range: 0.5A to 1400A
Measured cable (039mm or 025.4 mmx2)
Narrow jaw design, easy to use in the narrow space of dense wiring
9V alkaline battery, 55 hours of continuous work
Accurately measure, analyze and display distorted current waveforms and harmonics
-
Bandwidth
DC-10KHz
-
Current
DC/AC peak 1400A
-
Rise time
≤35us
-
Range sensitivity
1mV/A、10mV/A
-
Typical DC Accuracy
+1.5%+5mV
-
Maximum operating voltage
CATI600V、CATI 600V、CATII 300V
-
Typical battery type and life
9V NEDA1604A,IEC 6LR61 40 hoursminimum (leach)
-
Zero adjustment mode
Automatic
-
Overload indication
Current out of range, red light flashing
-
Jaw diameter
Φ39 mm /Φ25.4 mm x2
-
Weight
250g
-
Overall dimension
236x97x44mm
