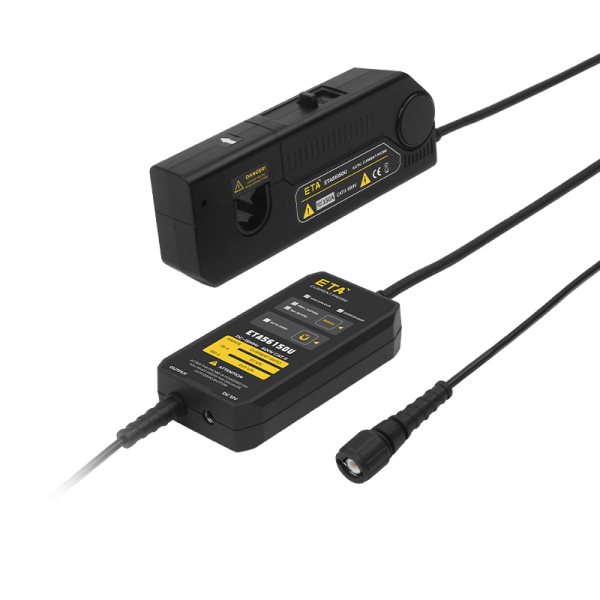

ETA56150U Current probe

Product features:
AC/DC dual-use
Current measurement range: 50mA to 500Arms
Can measure the fine cable (Ø19mm)
Accurately measure, analyze and display distorted current waveforms and harmonics

• Bandwidth

  DC-15MHz

• Current

  DC/AC RMS 150A

• Rise time

  ≤24ns

• Range sensitivity

  0.1V/A 0.01V/A

• Typical DC Accuracy

  士1%+20mA@0.1V/A 士1%+200mA@0.01V/A

• Maximum operating voltage

  600V CATII 300V CATIII

• Zero adjustment mode

  Automatic

• Power supply modenction

  12V/2A power supply

• Jaw diameter

  Φ19mm

• Interface Type

  BNC

• Weight

  523g

• Overall dimension

  Control box: 109mm x 24.2mm x 57.8mm //Current clamp: 170mm x 30mm x 65mm

• Delay time

  Probe host 37ns //BNC 5ns (line length 1 m)

• Cable length

  Control box to BNC connector cable length: 0.9m// Cable length from control box to current clamp: 1.4m
