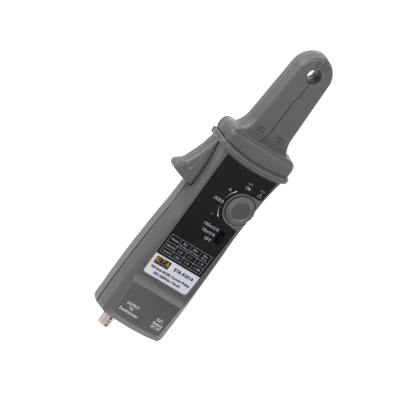

Bandwidth

DC-300KHz

Current

DC/AC peak 100A

Rise time

≤1.2us

Range sensitivity

100mV/A、10mV/A

Typical DC Accuracy

3% ± 50mA

Maximum operating voltage

CATI600V、CATI 600V、CATII 300V

Typical battery type and life

9VNEDA 1604A,IEC 6LR6113 hours minimum

Zero adjustment mode

Manual

Low battery indication function

Battery voltage <6.5V, indicator red

Overload indication

Current exceeds range, buzzer sounds

Jaw diameter

Φ11mm

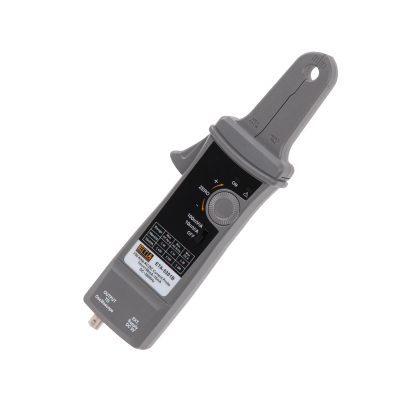

Bandwidth

DC-300KHz

Current

DC/AC peak 200A

Rise time

≤1.2us

Range sensitivity

100mV/A、10mV/A

Typical DC Accuracy

3% ± 50mA

Maximum operating voltage

CATI600V、CATI 600V、CATII 300V

Typical battery type and life

9VNEDA 1604A,IEC 6LR6113 hours minimum (l each)

Zero adjustment mode

Manual

Low battery indication function

Battery voltage <6.5V, indicator red

Overload indication

Current exceeds range, buzzer sounds

Jaw diameter

Φ11mm

Bandwidth

DC-3.5MHz

Current

DC/AC peak 100A

Rise time

≤100ns

Range sensitivity

100mV/A、10mV/A

Typical DC Accuracy

3% ± 50mA

phase shift

DC~65Hz:＜1°

Maximum operating voltage

CATI600V、CATI 600V、CATII 300V

Typical battery type and life

9VNEDA 1604A,IEC 6LR6113 hours minimum (l each)

Zero adjustment mode

Automatic

Low battery indication function

Battery voltage <6.5V, indicator red

Overload indication

Current exceeds range, buzzer sounds

Jaw diameter

Φ11.8mm

Bandwidth

DC-5.5MHz

Current

DC/AC peak 100A

Rise time

≤64ns

Range sensitivity

100mV/A、10mV/A

Typical DC Accuracy

3% ± 50mA

phase shift

DC~65Hz:＜1°

Maximum operating voltage

CATI600V、CATI 600V、CATII 300V

Typical battery type and life

9VNEDA 1604A,IEC 6LR6113 hours minimum

Zero adjustment mode

Automatic

Low battery indication function

Battery voltage <6.5V, indicator red

Overload indication

Current exceeds range, buzzer sounds

Jaw diameter

Φ11.8mm

Bandwidth

DC-600KHz

Current

DC/AC peak 100A

Rise time

≤580ns

Range sensitivity

100mV/A、10mV/A

Typical DC Accuracy

3% ± 50mA

phase shift

DC~65Hz:＜1.5°

Maximum operating voltage

CATI600V、CATI 600V、CATII 300V

Typical battery type and life

9VNEDA 1604A,IEC 6LR6113 hours minimum (l each)

Zero adjustment mode

Automatic

Low battery indication function

Battery voltage <6.5V, indicator red

Overload indication

Current exceeds range, buzzer sounds

Jaw diameter

Φ11.8mm

Bandwidth

DC-1.5MHz

Current

DC/AC peak 100A

Rise time

≤230ns

Range sensitivity

100mV/A、10mV/A

Typical DC Accuracy

3% ± 50mA

phase shift

DC~65Hz:＜1.5°

Maximum operating voltage

CATI600V、CATI 600V、CATII 300V

Typical battery type and life

9VNEDA 1604A,IEC 6LR6113 hours minimum

Zero adjustment mode

Automatic

Low battery indication function

Battery voltage <6.5V, indicator red

Overload indication

Current exceeds range, buzzer sounds

Jaw diameter

Φ11.8mm

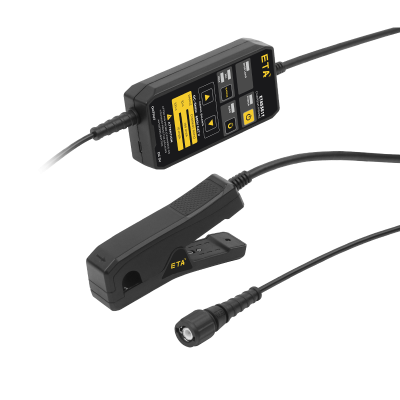

Bandwidth

DC-5MHz

Current

DC/AC peak 100A

Rise time

≤70ns

Range sensitivity

100mV/A、10mV/A

Typical DC Accuracy

3% ± 50mA

phase shift

DC~65Hz:＜1°

Maximum operating voltage

CATI600V、CATI 600V、CATII 300V

Zero adjustment mode

Manual

Power supply modenction

5V/2A power supply

Overload indication

Current overrange, indicator light red

Jaw diameter

Φ13mm

Interface Type

BNC

Weight

283g

Overall dimension

100 mmx23mmx55 mm

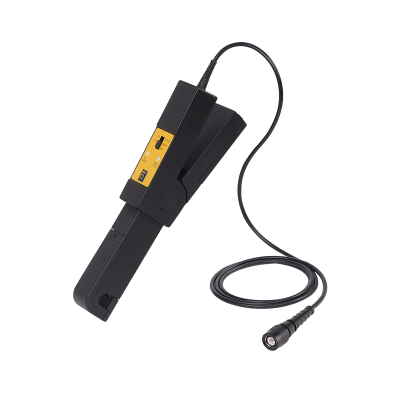

Bandwidth

1Hz-20MHz

Current

AC 80A RMS

Pulse Current

AC 7500A peak

Accuracy

±1%

Rise time

≤20ns

Range sensitivity

1V/10A

Input impedance

1MΩ

Opening diameter

18mm

Cable length

100mm

Overall dimension

216x111x45mm

Weight

160g

Temperature

0~65℃

Bandwidth

100MHz

Rise time

≤3.5ns

Accuracy

±2%

Attenuation ratio

200X;2000X

Voltage range

±5600V DC+Peak AC

Common mode voltage

±5600V DC+ Peak AC

Maximum input voltage to ground

2800V CAT I 1400V CAT II Vrms

Delay time

20ns±1ns

Linearity

±1%

Input impedance

Single-ended to ground 16MΩ ± 1%； Two input terminals 32MΩ ± 1%

Input capacitance

Single-ended to ground ＜4pF ；Two input terminals ＜2pF

CMRR

DC > 80dB ;100Hz > 60dB; 1MHZ > 50dB

Noise level

200X ＜ 300mVrms ; 2000X ＜ 2000mVrms

Overload indication voltage threshold

200X ≥ 580V; 2000X ≥ 5800V

Overload indicator lamp

Red Light

Input Wire Length

60mm

Output lead length

90mm

Overall dimension

120mmx55mmx24mm

Weight

150g

Working temperature and humidity

0~40°C,80% or less

Save temperature and humidity

-10~40°C,80% or less

Power

USB 9V/1A Adapter

Bandwidth

25MHz

Rise time

≤14ns

Accuracy

±2%

Attenuation ratio

50X;500X

Voltage range

±130V /±1300V

Common mode voltage

±1300V DC+ Peak AC

Maximum input voltage to ground

1000V CAT II 600V CAT III Vrms

Delay time

20ns±1ns

Linearity

±1%

Input impedance

Single-ended to ground 4MΩ ± 1%； Two input terminals 8MΩ ± 1%

Input capacitance

Single-ended to ground ＜7pF ；Two input terminals ＜3.5pF

CMRR

DC > 80dB ;100Hz > 60dB; 1MHZ > 50dB

Noise level

50X ＜ 75mVrms ; 500X ＜ 500mVrms

Overload indication voltage threshold

50X ≥ 140V; 500X ≥ 1400V

Overload indicator lamp

Red Light

Input Wire Length

60mm

Output lead length

90mm

Overall dimension

120mmx55mmx24mm

Weight

150g

Working temperature and humidity

0~40°C,80% or less

Save temperature and humidity

-10~40°C,80% or less

Power

USB 9V/1A Adapter
