Product name
ET1080K+G-K-30
-
Insulation layer
Glass fiber
-
AWG
30
-
Conductor specifications
2*0.25mm
-
Overall dimensions
0.6mm*1.0mm
-
Maximum temperature
100~480°C
-
Durable
Poor
-
Flood
Poor
-
Plug
1080K
-
Plug Temperature resistance
180°C
-
-
-
Product name
ETA-T-J-30
-
Insulation layer
PFA
-
AWG
30
-
Conductor specifications
2*0.25mm
-
Overall dimensions
0.6mm*1.0mm
-
Maximum temperature
0~260°C
-
Durable
Excellent
-
Flood
Excellent
-
-
-

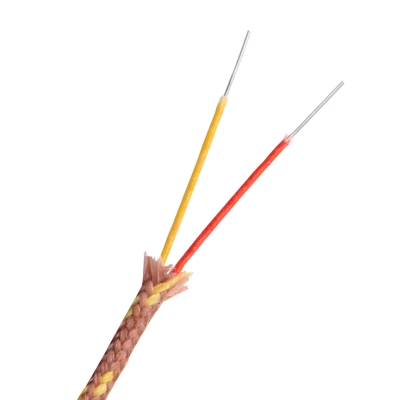

Product name
XS-K-20-IB
-
Insulation layer
Quartz glass fiber
-
AWG
20
-
Conductor specifications
2*0.78mm
-
Overall dimensions
2.0mm*3.2mm
-
Maximum temperature
100-980°C
-
Durable
Poor
-
Flood
Poor
-
-
-
Product name
ETA-T-K-36
-
Insulation layer
PFA
-
AWG
36
-
Conductor specifications
2*0.13mm
-
Overall dimensions
0.5mm*0.8mm
-
Maximum temperature
0~260°C
-
Durable
Excellent
-
Flood
Excellent
-
-
-

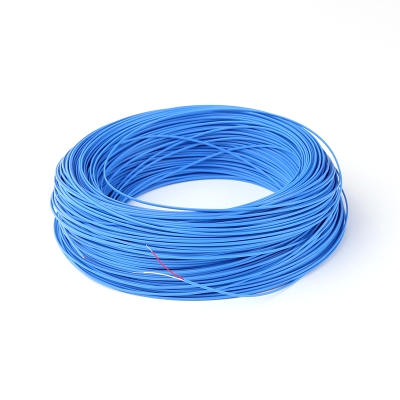

Product name
ETA1001K
-
Tolerance number
K
-
Epidermal color
blue
-
Measurement range
0-220°C
-
Error range
1.5°C/0.4%
-
Thermal response time
1S
-
Polarity marking
Red positive / White negative
-
Wire diameter
2*1/0.3mm
-
Dimensions of the shape
1.2*1.8mm
-
Wire core material
+ Nickel-Chromium - Nickel-Silicon
-
Insulating material
PFA
-
The total length of the volume
100m/200m
-
-
-

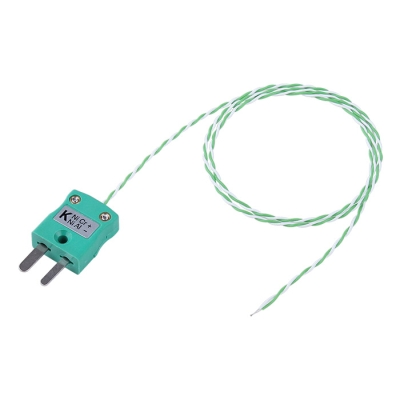

Product name
ET1080K+H-K-30
-
Insulation layer
PTFE
-
AWG
30
-
Conductor specifications
2*0.2mm
-
Polarity
White represents the negative pole / Green represents the positive pole
-
Enforce standards
IEC-584-3
-
Precision
1.1 °C or 0.4% reading (take the higher value)
-
Plug
1080KE
-
Plug Temperature resistance
150°C
-
Plug standard
IEC
-
Color
green
-
-
-
Product name
ET1080K+T-K-30
-
Insulation layer
PFA
-
AWG
30
-
Conductor specifications
2*0.25mm
-
Overall dimensions
0.6mm*1.0mm
-
Maximum temperature
260°C
-
Durable
excellent
-
Flood
excellent
-
Plug
1080K
-
Plug Temperature resistance
180°C
-
-
-

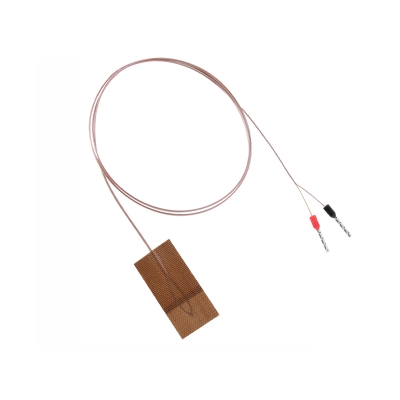

Product name
ET-T-K-30-200cm-S03
-
Optional indexing number
K 、T、J
-
Optional insulating layer
PFA/Glass fiber
-
AWG
30
-
Length
200cm
-
The end shape
S01/S02/S03/S04
-
Surface mount temperature resistance
200°C
-
Soldering pad size
15*30mm
-
Sensor shape
Beaded necklace
-
-
-
Product name
ET-T-K-30-500cm-S03
-
Optional indexing number
K 、T、J
-
Optional insulating layer
PFA/Glass fiber
-
AWG
30
-
Length
500cm
-
The end shape
S01/S02/S03/S04
-
Surface mount temperature resistance
200°C
-
Soldering pad size
15*30mm
-
Sensor shape
Beaded necklace
-
-
-
Product name
ET-T-K-30-100cm-S03
-
Optional indexing number
K 、T、J
-
Optional insulating layer
PFA/Glass fiber
-
AWG
30
-
Length
100cm
-
The end shape
S01/S02/S03/S04
-
Surface mount temperature resistance
200°C
-
Soldering pad size
15*30mm
-
Sensor shape
Beaded necklace
-
