Product Code：ETA5240A

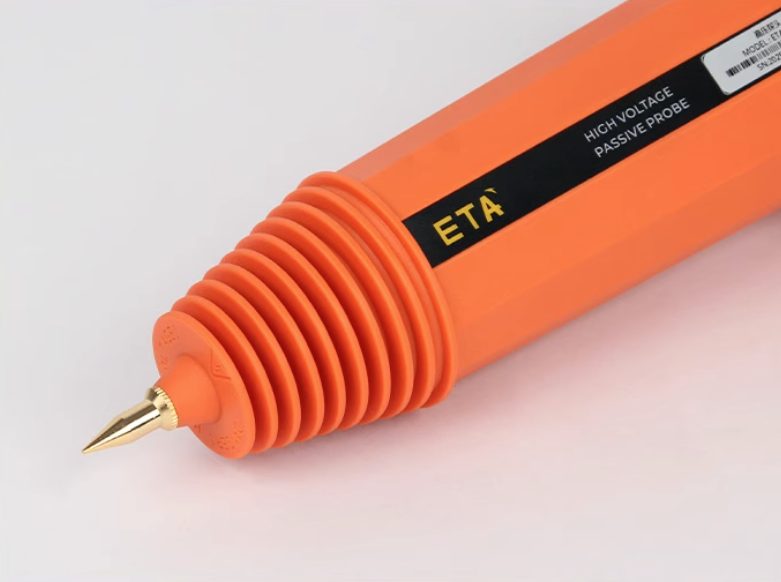

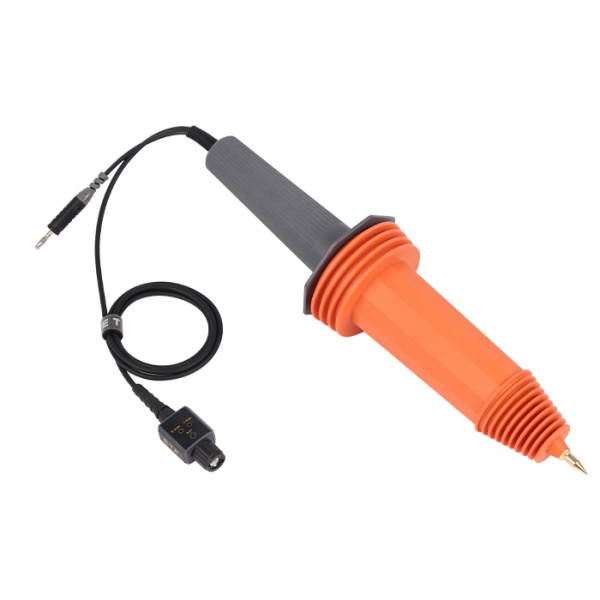

ETA5240A Single-ended high-voltage probe
Professional-grade, passive high-voltage probe, compatible with mainstream brands of oscilloscopes on the market, specially designed for measuring high-frequency and high-voltage signals, suitable for power electronics research and development, IGBT drive analysis, scientific research experiments, and high-voltage pulse signal capture.
$851.00
Free Shipping
Payment method
Safe and environmentally friendly shopping
Recently Recommended
-
ETA5220A Single-ended high-voltage probe$380.00$380 -
ETA5230A Single-ended high-voltage probe$0.00 -
ETA5230A Single-ended high-voltage probe$566.00$566
-
ETA5240A Single-ended high-voltage probe$851.00$851 -
ETA5250A Single-ended high-voltage probe$1137.00$1137 -
ETA5120 Single-ended high-voltage probe$34.00$34
Professional-grade passive high-voltage probe
compatible with mainstream oscilloscope brands in the international market,
specially designed for measuring high-frequency and high-voltage signals,
suitable for power electronics research and development, IGBT drive analysis,
scientific experiments, and high-voltage pulse signal capture.

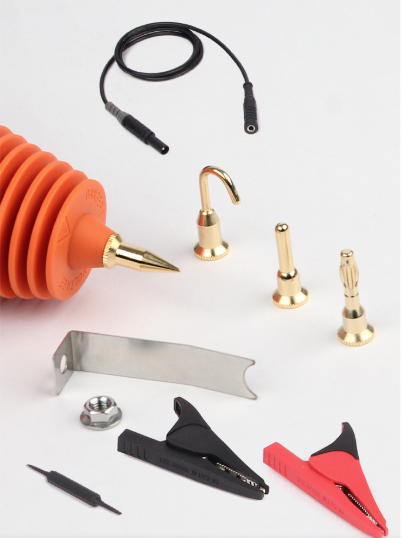

ACCESSORIES

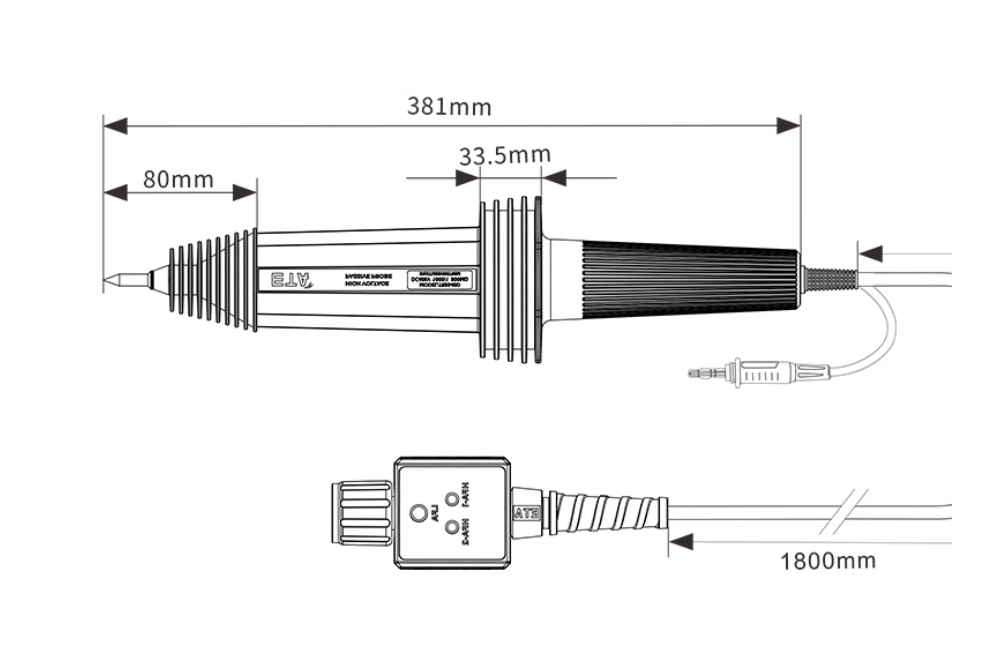

Product dimension diagram
-
Attenuation ratio
100:1
-
Bandwidth
DC to 50MHz
-
Rise time
7nS
-
Input impedance
900MΩ
-
Compensation range
10 to 35 pF
-

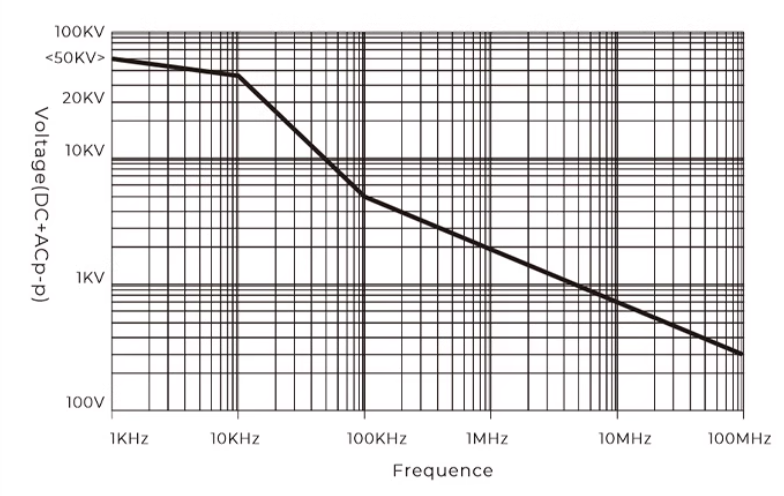

Input voltage
40KV DC/Peak AC ＜ 30s
-
Temperature and humidity
0℃ to 50 ℃；85%
-
Overall length
2m
